TECHNICAL
MEDIAVAULT EDGE
TRANSFER DRIVE

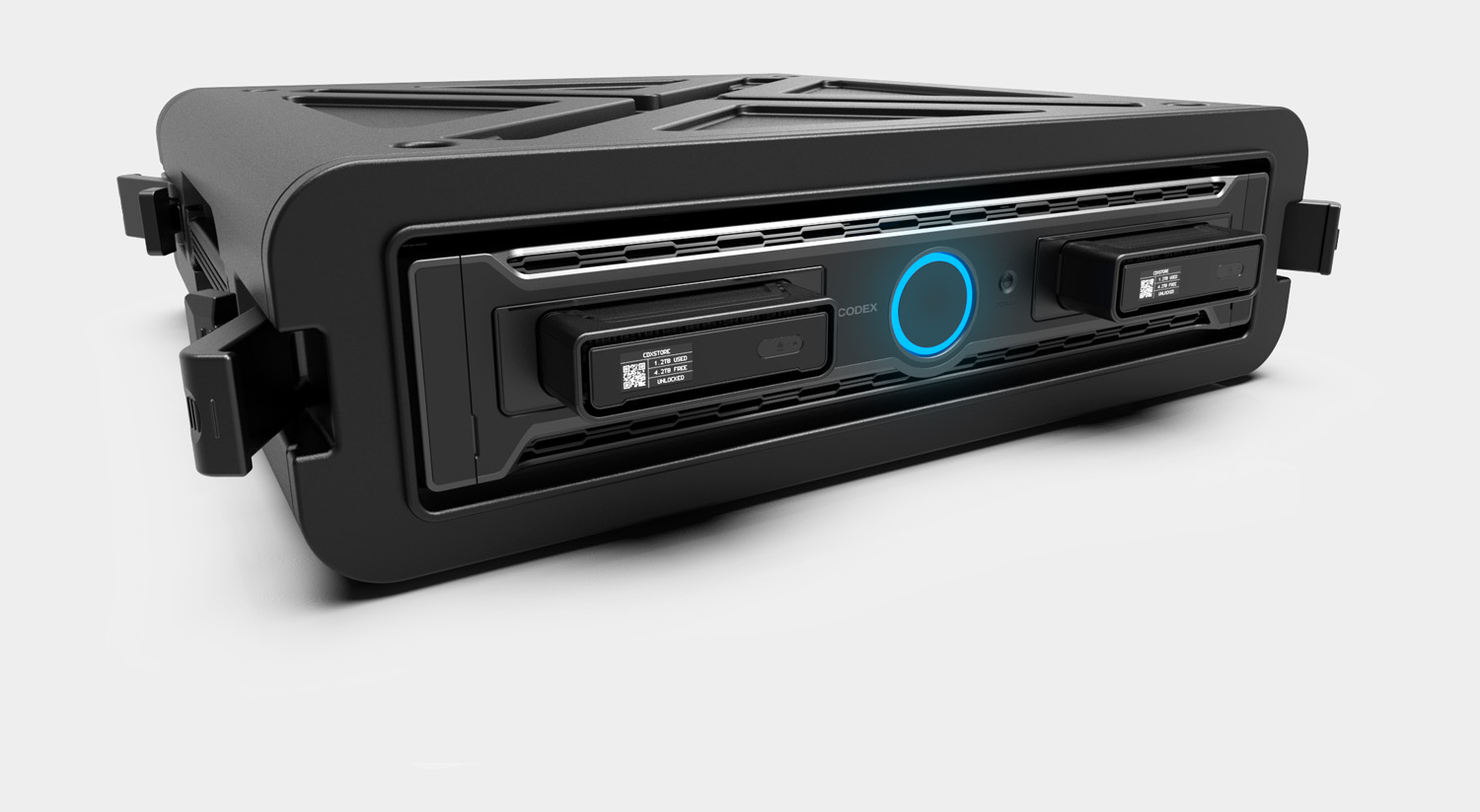

2RU

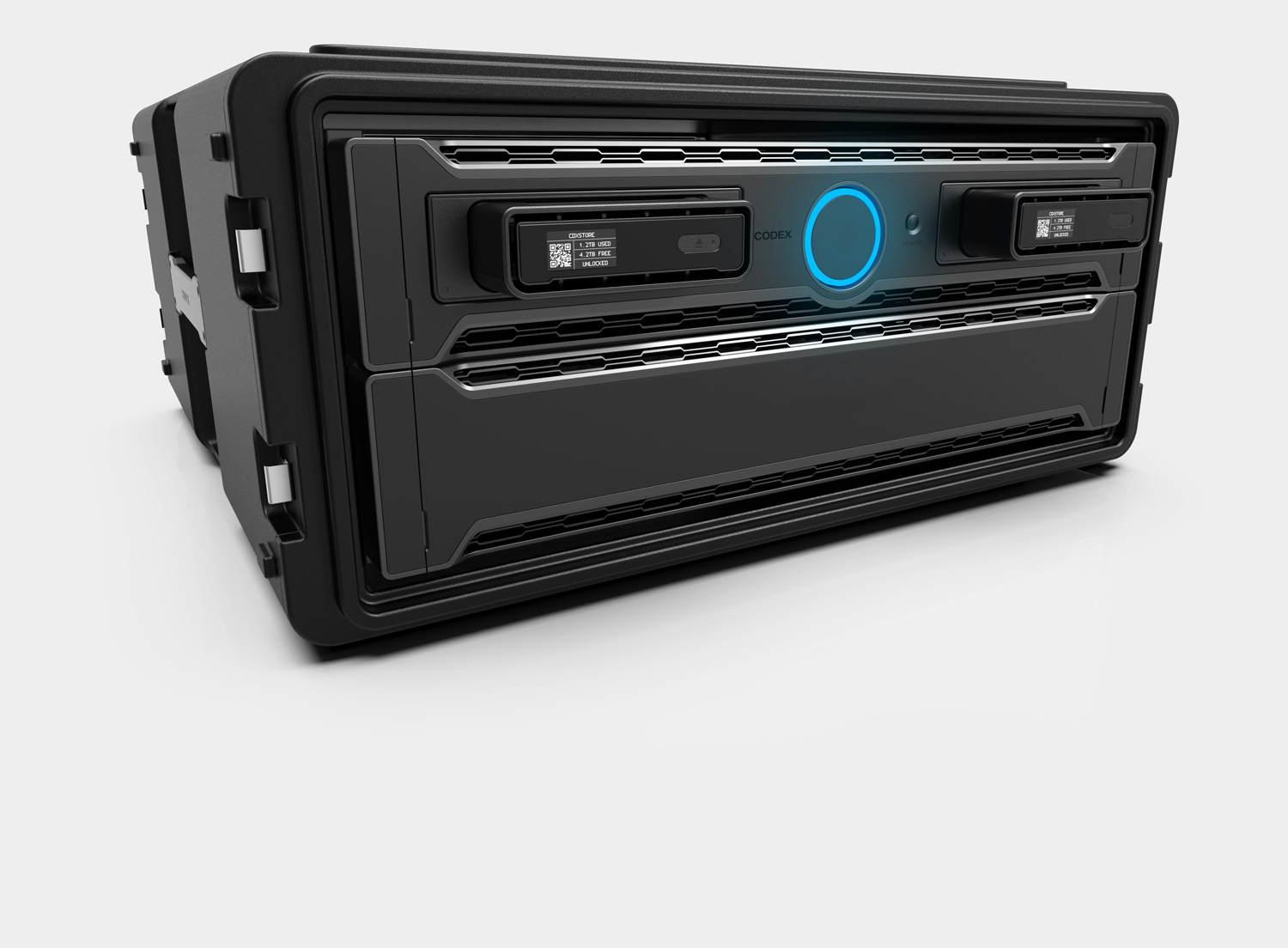

4RU
- 19” rack mount, 2U height, 20.5” deep
- AMD Epyc 7313P (3rd gen 16 core)
- 192 GB
- 2x 10G Ethernet
- 1000 W max
- 0-25°C operating temperature, optimised for quiet operation
- 2x removable 2.5” drive bays
- 19” rack mount, 4U height, 20.5” deep
- AMD Ryzen 3975W (32 core)
- 256 GB
- 2 x 10G Ethernet
- 1600 W max
- 0-25°C operating temperature, optimised for quiet operation
- 2x removable 2.5” drive bays
Extension Slots
- 7x PCIe 4.0 x16 full height single-width slots
- 2x unpopulated 5.25” bay bracket with blanking plate
Configuration Options
- Right Side 5.25” Bay Options
- Option A0: Empty
- Option A1: Transfer Drive bay - includes 1x NVMe card installed in a PCIe 4.0 x16 slot
- Left Side 5.25” Bay Options
- Option B0: Empty
- Option B1: Additional Transfer Drive bay - Prerequisites: A1
Internal Enterprise grade SSD Storage
- Install up to 12x enterprise grade SSDs (depending on the number of 2.5” slots provided by chassis configuration).
- A minimum of 6 drives are required for good aggregate performance (2000MB/s +). Possible configurations include: 5.76 TB (6x 960GB)
- 7.68 TB (8x 960GB)
- 11.52 TB (6x 1.92TB or 12x 960GB)
- 15.36 TB (8x 1.92TB)
- 23.04 TB (6x 3.84TB or 12x 1.92TB) 30.72 TB (8x 3.84TB)
- 46.08 TB (6x 7.68TB or 12x 3.84TB) 61.44 TB (8x 7.68TB)
- 92.16 TB (12x 7.68TB)
GPU Options
- Option G0: No GPU
- Option G1: 1x NVIDIA RTX A2000 (70W)
- Option G2: 1x NVIDIA RTX A4000 (140W)
- Option G2x2: 2x NVIDIA RTX A4000 (280W)
- Option G3: 1x NVIDIA RTX A5000 (230W)
- Option G4: 1x NVIDIA RTX A5500 (230W)
PCIe Card Options
- Option V1: AJA Corvid 44 12G BNC video I/O card
- Option V2: Mellanox ConnectX-6 dual 100G NIC
- Additional cards depending on customer specifications
Example Configurations
- Real-Time Transcoding System
Chassis: Core + A0 + B2 + C0
Internal storage SATA (6x 960GB = 5.76 TB) + G0
AJA Kona 5 video capture card (custom option) - Storage Edge Device (23.04TB internal)
Chassis: Core + A1 + B2 + C0
Internal storage: SATA (6x 3.84TB = 23.04 TB) - Storage & Processing Edge Device (GPU + 23.04TB internal)
Chassis: Core + A1 + B2 + C0
Internal storage and GPU: SATA (6x 3.84TB = 23.04 TB) + G2
Extension Slots
- 1x multipurpose 2.5” drive bracket (to house 1x 15mm or 2x 7mm devices, SATA or NVMe) 2x PCIe 4.0 x16 half height single-width slots
- 2x PCIe 3.0 x16 full height double-width slots
- 2x 5.25” apertures for optional 5.25” devices
Right side: 1x unpopulated 5.25” bay bracket with blanking plate
Left side: 1x blanking plate, with empty Custom Zone behind it (can optionally be fitted with 5.25” bay bracket)
Configuration Options
- Right Side 5.25” Bay Options
- Option A0: Empty
- Option A1: Transfer Drive bay - includes 1x NVMe card installed in a PCIe 4.0 x16 slot
- Left Side Custom Zone Options
- Option B1: 12x 2.5” 7mm SATA device slots
- Option B2: 1x 5.25” bay bracket, 2x multipurpose 2.5” drive brackets
- Left Side 5.25” Bay Options
- Option C0: Empty - Prerequisites: B2
- Option C1: Additional Transfer Drive bay - Prerequisites: A1, B2
Internal Enterprise Storage
- Install up to 32x Enterprise grade SSDs (depending on the number of 2.5” slots provided by chassis configuration).
- A minimum of 6 drives are required for good aggregate performance (2000MB/s +). Possible configurations include: 7.68 TB (8x 960 GB)
- 11.52 TB (6x 1.92 TB or 12x 960 GB)
- 23.04 TB (6x 3.84 TB or 12x 1.92 TB)
- 30.72 TB (8x 3.84 TB)
- 46.08 TB (12x 3.84 TB)
- 61.44 TB (8x 7.68 TB or 16x 3.84 TB)
- 92.16 TB (12x 7.68 TB)
- 122.88 TB (16x 7.68 TB)
- 184.32 (24x 7.68 TB - requires expansion card installed in a PCIe 4.0 x16 slot)
- 245.76 TB (32x 7.68 TB - requires expansion card installed in a PCIe 4.0 x16 slot)
GPU Options
- Option G0: No GPU
- Option G1: 1x NVIDIA RTX A4000 (140W)
- Option G1x2: 2x NVIDIA RTX A4000 (280W)
- Option G2: 1x NVIDIA RTX A5000 (230W)
- Option G2x2: 2x NVIDIA RTX A5000 with NVLink (460W) Option G3: 1x NVIDIA RTX A5500 (230W)
- Option G3x2: 2x NVIDIA RTX A5500 with NVLink (460W) Option G4: 1x NVIDIA RTX A6000 (300W)
- Option G4x2: 2x NVIDIA RTX A6000 (600W)
PCIe Card Options
- Option V1: AJA Corvid 44 12G BNC video I/O card Option
- V2: Mellanox ConnectX-6 dual 100G NIC Additional cards depending on customer specifications
Example Configurations
- Real-Time Transcoding System
Chassis: Core + A0 + B2 + C0
Internal storage: 6x 960GB = 5.76 TB) + G0 AJA Kona 5 video capture card (custom option) - Storage Edge Device (23.04TB internal)
Chassis: Core + A1 + B2 + C0
Internal storage: 6x 3.84TB = 23.04TB) - Storage & Processing Edge Device (GPU + 23.04TB internal)
Chassis: Core + A1 + B2 + C0
Internal storage and GPU: 6x 3.84TB = 23.04TB + G2
DRIVE
DOCK
- Dual Thunderbolt 3 Interface
- Single or Dual Link Operation Modes
- 8TB, 16TB, or 32TB Capacities
- 7.68TB, 15.36TB, or 30.72TB Usable Capacities
- 5,600 MB/s (maximum) Data Transfer Rate
- Dimensions 150 x 115 x 35mm
- Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- 8 x M.2 (2280) Enterprise NVMe SSD Memory
- macOS and Windows
- RAID-0 (RAID-5 licensed option coming soon)
- 3-Year Limited Warranty
- CE, FCC Certification
- Dual Thunderbolt 3 Interface
- Single or Dual Link Operation Modes
- 8TB, 16TB, or 32TB Capacities
- 5,600 MB/s (maximum) Data Transfer Rate
- Dimensions 150 x 214 x 58mm
- Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- 160W Power Supply
- Host charging up to 85W
- Host charging 60W while Transfer Drive loaded
- macOS and Windows
- 3-Year Limited Warranty
- CE, FCC Certification
